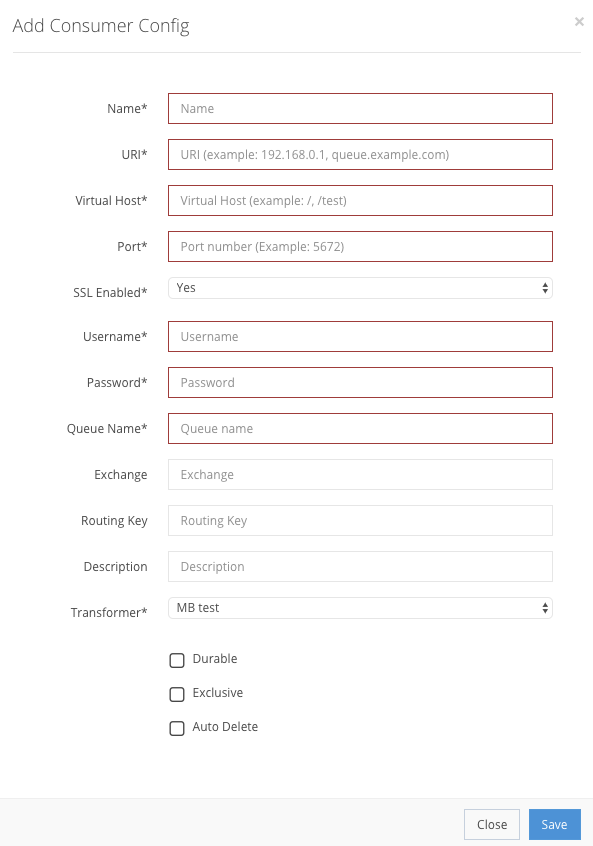

Press Add Consumer Config to get a new pop-up window where you enter the new event consumer’s information, as shown in the example below. Some fields are mandatory, others are optional for custom field creation.

Event consumer creation fields

Name String
Enter a name that you can use to refer to this configuration. It is for display only.

URI String
Identifies the name and location of a file or resource in a uniform format. It includes a string of characters for the filename, and may also contain the path to the directory of the file.

Virtual Host String
For RabbitMQ, enter the name of the virtual host for the desired namespace. For Kafka, set this to CL.

Port Integer
Specify the port to use for the connection.

SSL Enabled Boolean
Set to Yes to use an SSL connection.

Username String
Specify the username.

Password String
Specify the password.

Queue Name String
Specify the RabbitMQ queue name or the Kafka topic.

Exchange String
Specify an option Exchange name for a RabbitMQ queue.

Routing Key String
Specify the Routing Key for a RabbitMQ queue

Description String
An optional description for this queue.

Transformer Object
Selecting the transformer that was previously created in the Transformers sub-section.

Durable Boolean
The queue will remain after a broker restart


Exclusive Boolean
The queue is used by only one connection and the queue is deleted when the connection closes.

Auto Delete Boolean
The queue is deleted when the last consumer un-subscribes.

When you have entered all the information correctly, press Save and the event consumer will be saved

If information is filled out incorrectly, the information bar will be shown in red. If all the steps are correct, the Event consumer will be created in Settings → Event Consumers, as shown in the example. After creation, you can Edit the event consumer, or Start/Stop or Delete it from the list.

If the information is filled out incorrectly the information bar will be shown in red as in an example below.
